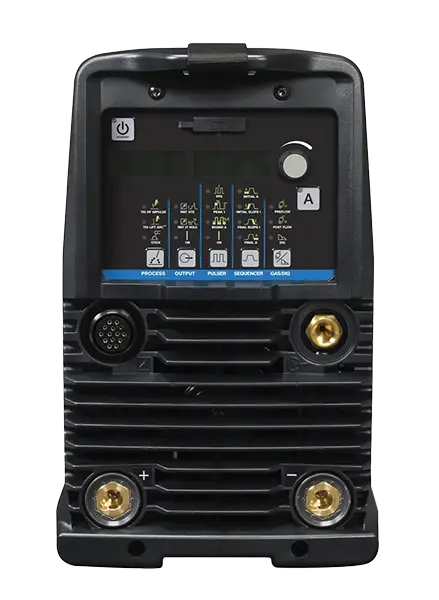

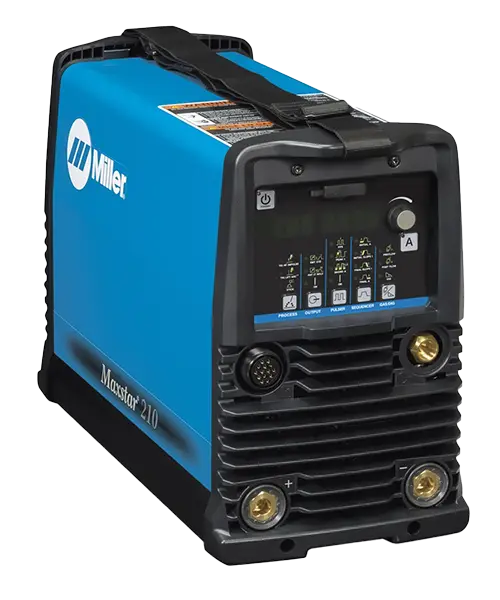

MILLER MAXSTAR 210 DX
£3621.10 EX VAT
The Legendary
PORTABLE DC TIG
The Miller Maxstar 210 DX takes portable DC TIG and stick welding to new levels of performance. This feature-packed 210 amp welder combines industrial capabilities with straightforward controls.
Powerful yet precise, the 210 DX excels at DC TIG welding, especially on site. The advanced HF arc starter ensures superior starts without contamination. Plus, operators can enable adaptive pulsing to increase travel speeds and arc stability when needed.
Hot Start and adaptive arc control deliver positive arc starts and optimized behaviour across a wide range of electrodes and with auto-line power management, operators can plug into any input from 120-480V - making the 210 DX truly portable.
With upgrades like remote controls and dual schedule select, the 210 DX provides advanced functionality. Yet the intuitive interface remains simple to use. Industrial strength components and rugged construction will withstand shop and site abuse.
Powerful yet precise, the 210 DX excels at DC TIG welding, especially on site. The advanced HF arc starter ensures superior starts without contamination. Plus, operators can enable adaptive pulsing to increase travel speeds and arc stability when needed.
Hot Start and adaptive arc control deliver positive arc starts and optimized behaviour across a wide range of electrodes and with auto-line power management, operators can plug into any input from 120-480V - making the 210 DX truly portable.
With upgrades like remote controls and dual schedule select, the 210 DX provides advanced functionality. Yet the intuitive interface remains simple to use. Industrial strength components and rugged construction will withstand shop and site abuse.
Product
VIDEO
012345678900123456789001234567890 AMax Amperage
0123456789001234567890 VImpressive maximum TIG open circuit voltage for superior arc starts.
0123456789001234567890 %Duty Cycle - At full 210 amp TIG output
012345678900123456789001234567890 -012345678900123456789001234567890 vVolts Auto-line input voltage range, perfect for site use.
Product
HIGHLIGHTS
PRECISE DC TIG
Delivers exceptional arc stability and puddle control for welding exotic metals or thin gauges.
PULSE TIG CAPABLE
Enables pulsing to increase travel speeds, arc consistency, and puddle agitation.
POWERFUL STICK
Wide 5-210 amp range to handle any electrode plus arc force control to optimize the arc.
AUTO-LINE VOLTAGE
Automatically adjusts for any input voltage from 120-480V without manual linking.
ADVANCED CONTROLS
Intuitive interface yet capable of complex welds with upgradeable memory card slots.
PORTABLE
At just 17.2 kg, rolls easily on a cart for portable DC TIG and stick welding.
FAN-ON-DEMAND
Cooling fan only operates when needed, reducing contaminants and energy use.
TOUGH AND DURABLE
Protected components and industrial construction withstand workshop environments.
QUALITY ASSURED
3 year warranty provides peace of mind on parts and labor.
GET IN TOUCH ENQUIRE ABOUT
This Product Name
For more information about this product, speak to one of our experts by calling the number below.
DOWNLOADS
Technical
INFORMATION
| Title | Maxstar® DX 210 120-480 V |
| Material Thickness | 0.05 mm – 6.4 mm |
| Weldable Metals | Stainless Steel and Mild Steel |
| Input Voltage | 110/115/120 V, 208 V, 220/230/240 V, 380/400 V, 460/480 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50/60 Hz |
| Current Type | DC |
| Max Open Circuit Voltage | 80 VDC |
| Amperage Min | 1 A |
| Amperage Max | 210 A |
| Portability | Handle(s), Running Gear / Cart (Optional), Strap |
| Weld Output | CC |
| Net Dimensions (W x H x L) | 8.6 x 13.6 x 19.5 in. |
| Net Weight | 38 lbs |
| Warranty | 3 Years Miller’s True Blue |
Frequently Asked
Questions
If you have a question not on our FAQs, please don’t hesitate to get in touch by calling us or filling out the short form below?
Q: What welding processes can the Maxstar 210 DX perform?
A: The 210 DX is designed for DC TIG and stick welding only.
Q: Can I use a foot pedal remote control with this model?
A: Yes, the 210 DX is compatible with wireless foot pedals for remote current control..
